D&D SlimLine Right-Handed Hydraulic Vertical Gate Closer - DC622G-R-1-9004

Details

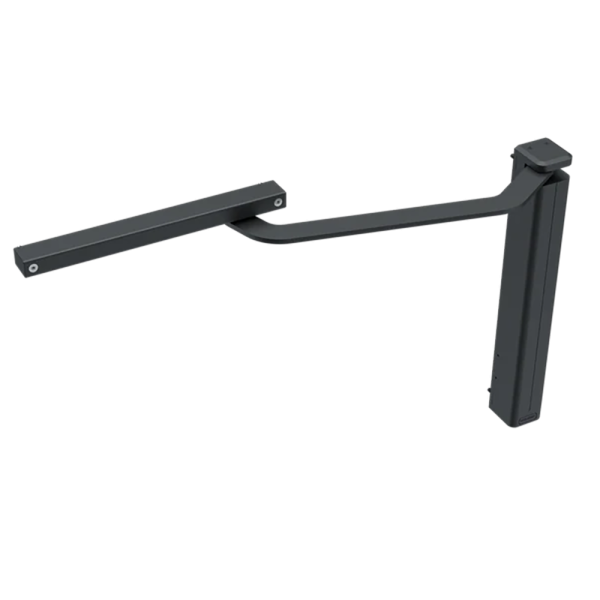

D&D SlimLine Right-Handed Hydraulic Vertical Gate Closer - DC622G-R-1-9004

The D&D SlimLine Right-Handed Hydraulic Vertical Gate Closer (DC622G) combines compact design with advanced performance to meet the needs of both new installations and retrofit applications. Supporting gates up to 4 feet 3 inches wide and 330 pounds, this closer uses 3D Cam-Motion® Technology and adjustable closing and latching speeds to ensure smooth, controlled motion. Designed for compatibility with both face- and center-mounted hinges, it offers 14 mounting positions and can be installed on brick, concrete, or metal posts without welding. Its ADA suitability on gates 34 inches or wider, pinch-free guide rail, and all-weather performance make it an excellent fit for commercial, residential, or safety-critical environments.

Features

• 3D Cam-Motion Technology for fluid gate movement
• Right-handed orientation with vertical, low-profile mounting
• 14 versatile mounting positions for wide compatibility
• Supports self-closing gates up to 330 lb (150 kg)
• Independently adjustable closing and latch speeds
• No welding required – mounts with included screws and rivets
• Pinch-free guide rail enhances user safety
• ADA suitable for gates 34” and wider
• Consistent performance across varying weather conditions

Specifications

• Gate Compatibility: Pedestrian, security, privacy, safety, pet, public/commercial, and more
• Mount Type: Pillar or wall, push or pull side
• Gate Width: Up to 4.3 ft (1.3 m)
• Gate Height: Approx. 6 ft (1.8 m)
• Max Gate Weight: 330 lb (150 kg)
• Material Compatibility: Aluminum, steel/ornamental iron, brick
• Finish: Black anodised
• Gate Gap Range: 1/2”–1 3/8” (12–35 mm)
• Minimum Post Size: 2" (50 mm)
• Fixing Method: Screw-on
• Included Components: Guide rail, mounting screws, rivets
