CodeLocks CL500 Gate Panic Exit Hardware Kit For CL510 and CL515 (Marine Grade Black) - 95016

CodeLocks CL500 Gate Panic Exit Hardware Kit For CL510 and CL515 (Marine Grade Black) - 95016
$715.08
CodeLocks CL500 Gate Panic Exit Hardware Kit provides a simple and secure way to maintain security for your fenced perimeter and outdoor space. The kit provides all necessary components required in a straightforward installation, making installation quick and easy. With a sleek black finish on the lock, it is ideal for both indoor and outdoor use, making it a great choice for schools, hospitals, hotels, pool areas, and backyards. CodeLocks CL500 Gate Panic Exit Hardware Kit makes the perfect primary lock for securing any restricted area, both residential and commercial.

OR

Call (800) 878-7829

Details

CodeLocks CL500 Gate Panic Exit Hardware Kit - 95016

CodeLocks CL500 Gate Panic Exit Hardware Kit provides a simple and reliable way to maintain security for your perimeter, outdoor space, or building entrance. With the Marine Grade Black finish, this lock is suitable for both interior and exterior use and can be installed on both wooden and metal doors and entryways. This model can allow entry with multiple options: key, code, or passage function, making its use flexible to meet whatever needs your application requires.

With the CL500 Gate Panic Exit Hardware Kit all necessary components are supplied, making installation straightforward, and able to be done without hiring a professional installer. The lock comes powder-coated and pre-drilled, and features an anti-theft manipulation device, keeping your entryway secure. With its heavy-duty design, tubular latch, and full-size handles, this model is the ideal choice for areas of heavy traffic in both residential and commercial areas.

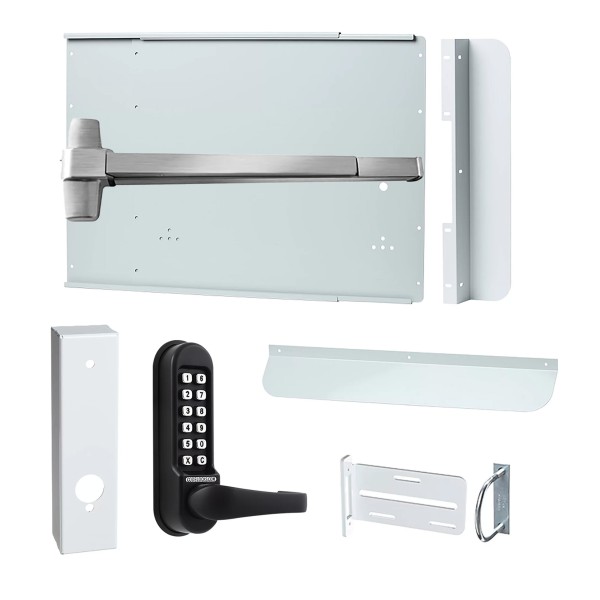

Kit Includes:

  • CL500 Panic Access Kit
  • ANSI Grade 1 CL-ED Series Panic Exit Bar
  • Adjustable Strike Bracket With U-Bolt Fastener
  • Anti-Theft Manipulation Device
  • 24” Tall Latch Protector
  • Specified, Pre-Drilled Trim Box
  • 24”, 2-Piece Panic Shield Adjustable To Suit 30”- 54” Wide Gates
  • CodeLocks Installation, Operating/Programming Instructions With Fastening Bolts

Key Features:

  • Lock Type: Mechanical
  • Ideal Door Thickness: 1-3/8" - 2-3/8" (35mm - 60mm)
  • Total Codes Possible: 2,047 Total Non-Sequential Codes
  • Kit Designed For Maximum Ease Of Use, Installation, & Maintenance
  • Large Full Size Lever Handles With Return To Door
  • Mortice Lock: Grade 1 ANSI American Mortice Latchbolt
  • Marine Grade Black Finish Makes Lock Suitable Especially For Exterior Applications
  • Large, Three-Coil Lever Return Spring Suitable For High Traffic Areas
  • Complete Kits Containing All Required Components For Installation
  • Powder-Coated and Pre-Drilled Holes For Easy Gate & Fence Installation
  • Marine Grade Exterior Rated With Neoprene Seals Included
  • Lifetime Limited Manufacurer's Warranty

Technical Specifications:

  • Codes: Single Code Storage
  • Finish: Marine Grade Black
  • Gate Box Dimensions: 24" x 2" x 30"
  • Total Codes: 2,047 Non-Sequential Combinations
  • Gate Box Material: 14-Gauge Steel
  • Tubular Latch: Medium-Duty Deadlocking Latch
  • Code Change Method: Tumblers (Off Door)
  • Orientation: None (Locks Will Fit Doors Hung on Either Left or Right Side)
  • Keypad: 12 Stainless Steel Buttons (2 Wide X 6 Tall)
  • Lock Material: Zinc Alloy
  • Orientation: Vertical
  • Spindle: Two-Part 8mm (5⁄16) spring loaded spindle
  • Suitable Application Areas: Internal/External
  • User Types: Code

Additional Information

SKU 95016
Series CL500
Finish Black
Lock Type Mechanical Lock
Latch Type Tubular Latch
Manufacturer CodeLocks
