CodeLocks CL5000 Gate Panic Exit Hardware Kit Electronic Lock For CL5210 (Brushed Steel) - 95377

CodeLocks CL5000 Gate Panic Exit Hardware Kit Electronic Lock For CL5210 (Brushed Steel) - 95377
$819.75
CodeLocks Gate Panic Exit Hardware Kits provide a simple and reliable way to maintain security for your perimeter, outdoor space, or building entrance. This Kit features the CL5000 Heavy-Duty Electronic Lock, designed for use in medium traffic applications. Features a 3 x 4 keypad, is capable of storing up to 80 User Codes, and can be used for both interior and exterior applications.

OR

Call (800) 878-7829

Details

CodeLocks CL5000 Gate Panic Exit Hardware Kit Electronic Lock For CL5210 (Brushed Steel) - 95377

CodeLocks Gate Panic Exit Hardware Kits provide a simple and reliable way to maintain security for your perimeter, outdoor space, or building entrance. With its Brushed Steel finish, this lock is suitable for both interior and exterior use and can be installed on both wooden and metal doors and entryways. This model can allow entry with multiple options: key, code, or passage function, making its use flexible to meet whatever needs your application requires.

CodeLocks CL5000 Heavy-Duty Electronic Locks are designed for use in medium traffic applications. The stylish design incorporates all the features of CL2000 and CL4000, in a larger, more robust assembly. Unlike the other electronic locks, the CL5000 has a conventional 3 x 4 button keypad layout for instant familiarity, providing quick programming with multiple ranges of functions. Particularly suitable for use in health, educational, commercial, and residential environments. Additionally, this heavy-duty electronic lock features a built-in tubular latch, full-size lever handles, and key override. It can manage up to 80 different User Codes and supports remote release connections.

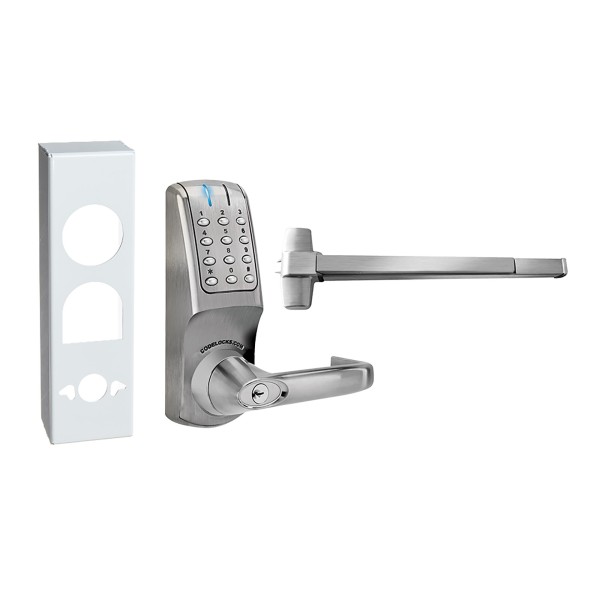

Kit Includes:

  • CL5000 Panic Access Kit
  • ANSI Grade 1 CL-ED Series Panic Exit Bar
  • Adjustable Strike Bracket With U-Bolt Fastener
  • Anti-Theft Manipulation Device
  • 24” Tall Latch Protector
  • Specified, Pre-Drilled Trim Box
  • 24”, 2-Piece Panic Shield Adjustable To Suit 30”- 54” Wide Gates
  • CodeLocks Installation, Operating/Programming Instructions With Fastening Bolts

Key Features:

  • Lock Type: Electronic
  • Ideal Door Thickness: 1-3/8" - 2-3/8" (35mm - 60mm)
  • Compatible Door Types: Wooden or Metal
  • Total Codes Possible: 80 User Codes (4, 5, or 6 Digit Codes)
  • Allows Up To 10 One-Time User Codes
  • Features QuickCode Functionality, Allowing Code Changes Without Having To Remove Lock From Door
  • Kit Designed For Maximum Ease Of Use, Installation, & Maintenance
  • Key Bypass and Front Cylinder Change
  • Tamper Time Out and Low Battery Warning
  • Locked/Unlocked LED Indicator Option
  • Remote Release Connection Capability
  • Complete Panic Exit Kit Containing All Required Components For Installation
  • Powder-Coated and Pre-Drilled Holes For Easy Gate & Fence Installation
  • Brushed Steel Exterior Rated With Neoprene Seals Included
  • Two-Year Limited Manufacurer's Warranty

Technical Specifications:

  • Codes: User Codes 4, 5, or 6 Digits Long
  • Finish: Brushed Steel - Low Maintenance PVD (Physical Vapor Deposition)
  • Gate Box Dimensions: 24" x 2" x 30"
  • Total Codes: Up To 80 User Codes
  • Operation Life: 200,000 Per Set of 4 x AA Batteries
  • Gate Box Material: 14-Gauge Steel
  • Code Change Method: Keypad (On Door)
  • Orientation: None (Locks Will Fit Doors Hung on Either Left or Right Side)
  • Keypad: 12 Stainless Steel Buttons (3 Wide X 4 Tall)
  • Lock Material: Zinc Alloy
  • Orientation: Vertical
  • Power Source: (4) AA Batteries
  • Spindle: Two-Part 8mm (5⁄16") Spring Loaded Spindle
  • Suitable Application Areas: Internal/External
  • User Types: Code
  • Safety Rating: Tested to Grade 2 ANSI A156.2 / A156.25 and UL/ULC Fire Rating 3 Hours

Additional Information

SKU 95377
Series CL5000
Finish Brushed Steel
Lock Type Electronic Lock
Latch Type Tubular Latch
Manufacturer CodeLocks
