CodeLocks CL600 Gate Panic Exit Hardware Kit For CL610 and CL615 (Brushed Steel) - 92295

CodeLocks CL600 Gate Panic Exit Hardware Kit For CL610 and CL615 (Brushed Steel) - 92295

CodeLocks CL600 Gate Panic Exit Hardware Kit provides a simple and reliable way to maintain security for your perimeter, outdoor space, or building entrance. With the Brushed Steel finish, this lock is suitable for both interior and exterior use and can be installed on both wooden and metal doors and entryways. This model can allow entry with multiple options: key, code, or passage function, making its use flexible to meet whatever needs your application requires.

Traditionally, changing the code on a mechanical lock requires the lock to be removed from the door; the CL600 however, features QuickCode functionality allowing changes to the door code to be done in seconds without having to remove the lock from the door. The CL600 QuickCode brings significant advantages to commercial users such as hospitals, schools, and local authorities. The locks allow for various ways of managing entry by code, key, or code-free access via full-size lever handles.

With the CL600 Gate Panic Exit Hardware Kit all necessary components are supplied, making installation straightforward, and able to be done without hiring a professional installer. The lock comes powder-coated and pre-drilled, and features an anti-theft manipulation device, keeping your entryway secure. With its heavy-duty design, tubular latch, and full-size handles, this model is the ideal choice for wooden doors in areas of heavy traffic in both residential and commercial areas.

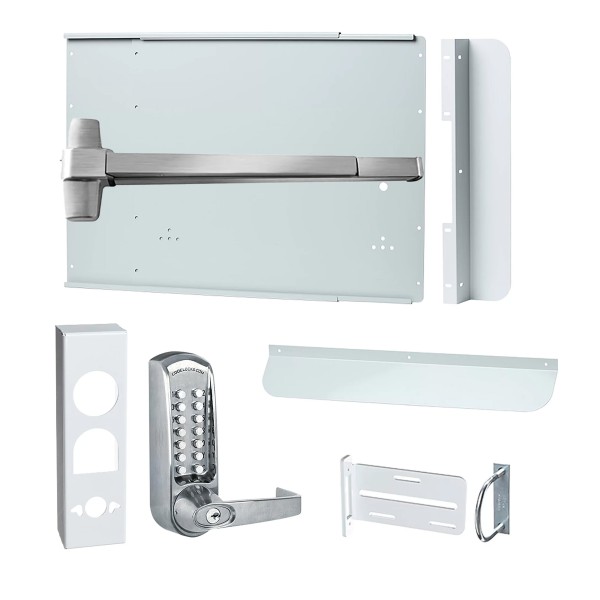

Kit Includes:

• CL600 Panic Access Kit
• ANSI Grade 1 CL-ED Series Panic Exit Bar
• Adjustable Strike Bracket With U-Bolt Fastener
• Anti-Theft Manipulation Device
• 24” Tall Latch Protector
• Specified, Pre-Drilled Trim Box
• 24”, 2-Piece Panic Shield Adjustable To Suit 30”- 54” Wide Gates
• CodeLocks Installation, Operating/Programming Instructions With Fastening Bolts

Key Features:

• Lock Type: Mechanical
• Ideal Door Thickness: 1-3/8" - 2-3/8" (35mm - 60mm)
• Total Codes Possible: 8,191 Total Non-Sequential Codes
• Features QuickCode Functionality, Allowing Code Changes Without Having To Remove Lock From Door
• Kit Designed For Maximum Ease Of Use, Installation, & Maintenance
• Large Full Size Lever Handles With Return To Door
• Mortice Lock: Grade 1 ANSI American Mortice Latchbolt
• Large, Three-Coil Lever Return Spring Suitable For High Traffic Areas
• Complete Kits Containing All Required Components For Installation
• Powder-Coated and Pre-Drilled Holes For Easy Gate & Fence Installation
• Brushed Steel Exterior Rated With Neoprene Seals Included
• Lifetime Limited Manufacurer's Warranty

Technical Specifications:

• Codes: Single Code Storage
• Finish: Brushed Steel - Low Maintenance PVD (Physical Vapor Deposition)
• Gate Box Dimensions: 24" x 2" x 30"
• Total Codes: 8,191 Non-Sequential Combinations
• Gate Box Material: 14-Gauge Steel
• Tubular Latch: Medium-Duty Latch With Anti-Shim Plunger
• Code Change Method: Keypad (On Door)
• Orientation: None (Locks Will Fit Doors Hung on Either Left or Right Side)
• Keypad: 14 Stainless Steel Buttons (2 Wide X 7 Tall)
• Lock Material: Zinc Alloy
• Orientation: Vertical
• Spindle: Two-Part 8mm (5⁄16) spring loaded spindle
• Suitable Application Areas: Internal/External
• User Types: Code
