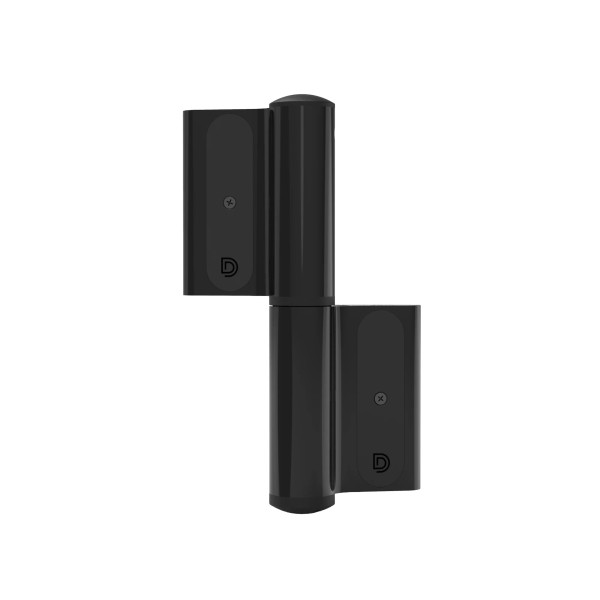

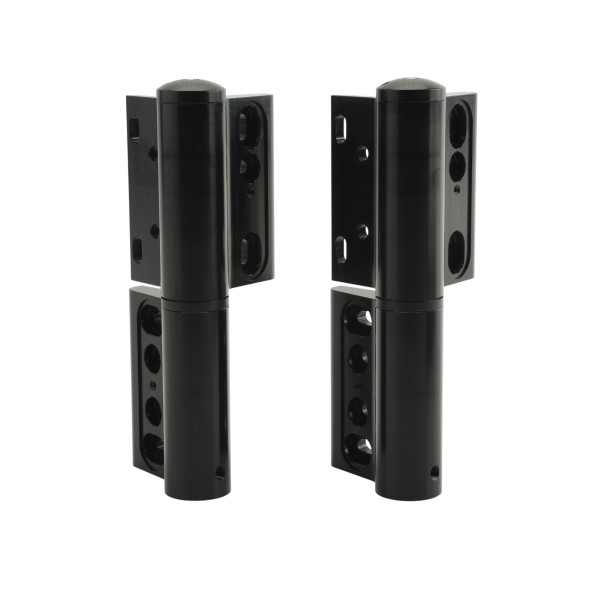

SureClose MK 180 Hydraulic Self-Closing Gate Hinge & Closer, Heavy-Duty Left-Handed for Aluminum and Steel Gates (Matte Black) - 77180743L

The SureClose MK 180 left-handed hydraulic self-closing gate hinge merges robust hinge support and integrated closer functionality into a single compact unit powered by MotionKinetic fluid technology for consistent 180-degree gate control across temperature extremes. Independent adjustment of the closing and latching speeds allows precise gate motion management, while the self-latching mechanism engages at 20 degrees to pull the gate securely into the closed position every time. Designed for square aluminum or steel gate frames mounted to square posts measuring 2 inches or larger, this screw-on hinge installs quickly and requires no additional gate stop, reducing both material costs and labor time. Its marine-grade matte black anodized finish resists salt air, rain, and UV exposure, making it ideal for coastal and harsh-environment openings approximately 4' wide by 6' high with an ideal gate gap of 3/5" to 4/5". Rated for gates up to 330 pounds when installed as a pair, this ADA-compliant solution suits front gates, side gates, single and double driveway gates, pedestrian walkways, playground gates, pet enclosures, public and commercial entries, security barriers, and privacy gates.

Features:

• 180 degree hydraulic self-closing control
• Adjustable closing and latching speeds
• Returns gates safely to the closed position
• Suitable for gates up to 330 lbs (150 kg)
• No gate stop required
• Excellent corrosion resistance
• Ideal for coastal and harsh environments
• Installs in minutes

Specifications:

• Marine-grade matte black, anodised finish
• Compact, low-profile 7 1/2" (190 mm) design
• Gate Application: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Gate Type: Self-Closing
• Gate Material: Aluminum, Steel/Ornamental Iron
• Self-Closing Gate Weight: Up to 330lb (150kg) as pair
• Approx Gate Size: 4' W x 6' H (1.2m x 1.8m)
• Gate Frame/Post Shape: Square-to-Square
• >Min Post Size: 2"+ (50mm)
• >Ideal Gate Gap: 3/5" - 4/5" (15-21mm)
• >Fixing Method: Screw-On
• >Colour/Finish: Matte Black Anodised
