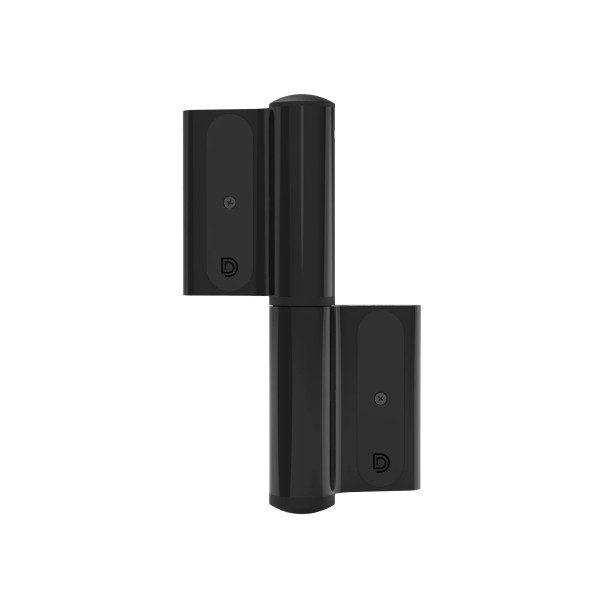

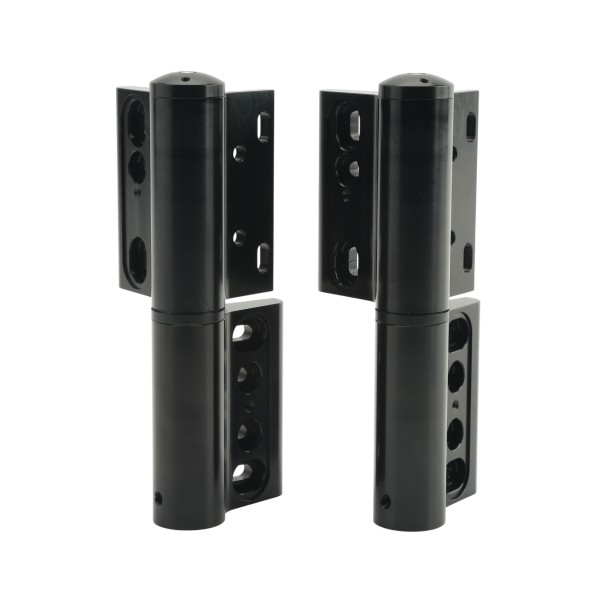

SureClose MK 180 Hydraulic Self-Closing Gate Hinge & Closer, Heavy-Duty Right-Handed for Aluminum and Steel Gates (Matte Black) - 77180743R

The SureClose MK 180 right-handed hydraulic self-closing gate hinge combines durable pivot support and built-in closer operation in one compact housing, driven by MotionKinetic fluid technology to maintain steady 180-degree gate control through shifting temperatures. Closing and latching speeds can be tuned independently for exact gate movement, and the self-latching feature activates at 20 degrees to draw the gate firmly shut on every cycle. Built for square aluminum or steel gate frames attached to square posts of 2" or more, this screw-mounted hinge installs quickly and requires no extra gate stop, trimming both parts spending and installation labor. A marine-grade matte black anodized surface defends against salt air, rainfall, and UV rays, ensuring dependable service in coastal and severe conditions for openings roughly 4' by 6' with a recommended gate gap of 3/5" to 4/5". Supporting gates up to 330 pounds when paired, this ADA-compliant unit fits front gates, side gates, single and double driveway gates, pedestrian paths, playground gates, pet runs, public and commercial doorways, security fences, and privacy screens.

Features:

• 180 degree hydraulic self-closing control
• Adjustable closing and latching speeds
• Returns gates safely to the closed position
• Suitable for gates up to 330 lbs (150 kg)
• No gate stop required
• Excellent corrosion resistance
• Ideal for coastal and harsh environments
• Installs in minutes

Specifications:

• Marine-grade matte black, anodised finish
• Compact, low-profile 7 1/2" (190 mm) design
• Gate Application: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Gate Type: Self-Closing
• Gate Material: Aluminum, Steel/Ornamental Iron
• Self-Closing Gate Weight: Up to 330lb (150kg) as a pair
• Approx Gate Size: 4' W x 6' H (1.2m x 1.8m)
• Gate Frame/Post Shape: Square-to-Square
• >Min Post Size: 2"+ (50mm)
• >Ideal Gate Gap: 3/5" - 4/5" (15-21mm)
• >Fixing Method: Screw-On
• >Colour/Finish: Matte Black Anodised
