LokkLatch Deluxe S3 Gate Latch Kit with TruClose Adjustable Hinge Sets & Drop Rod - 8000-2108

LokkLatch Deluxe S3 Gate Latch Kit with TruClose Adjustable Hinge Sets & Drop Rod - 8000-2108

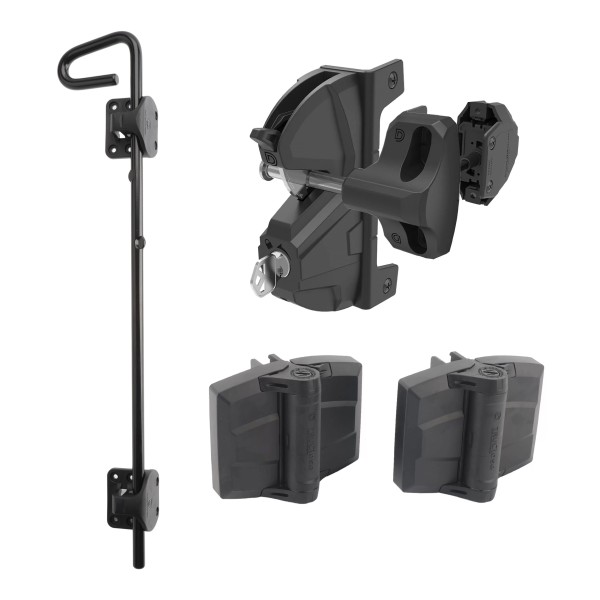

The NEW LokkLatch Deluxe S3 offers both vertical and horizontal adjustment, ensuring the best fit and reliable operation. This latch kit is designed to fit 6-inch square gate posts and can be adapted to left- or right-swinging gates. The kit includes the Series 3 latch, a padlockable drop rod, and two pairs of TruClose gate hinges.

Part Number: 8000-2108

Minimum of 10

$223.85 each x 10
$2,238.50 subtotal

Details

LokkLatch Deluxe S3 Gate Latch Kit with TruClose Adjustable Hinge Sets & Drop Rod - 8000-2108

Experience the better, stronger, and faster to install LokkLatch Deluxe Series 3 gate latch kit. This latch kit is easy to install on any left- or right-oriented swing gate, with up to a 6-inch post. Offering superior security, this gate latch can be used in residential and industrial settings, operating with locks on both sides, eliminating the need for padlocks, chains, and handle holes. The LokkLatch Deluxe S3 is made of super-strong and rust-free polymers and stainless-steel components.

This kit also includes a padlockable drop rod and two pairs of TruClose Multi-Adjustable Heavy-Duty Gate Hinges. The hinges have an adjustable spring tension and a 3/4" gap adjustment, combined with up to 3/4" horizontal or vertical adjustments. It fits a gate gap ranging from 5/8" - 1 3/8" while the ideal gap size is 1", while its heavy-duty construction makes these hinges suitable for gates weighing up to 132 lbs.

Kit Includes

Latch Features

Operates and locks from both sides of the gate
Vertically & horizontally adjustable
Keyed-alike or keyed different options
"Fitting-jig" provides easier, faster installation
Ball-Joint Connecting Rod simplifies installation
Includes Two latch-bolt lengths for different gates
Requires only one drilled hole through post
Dual 6-pin locks can be rekeyed to match doors
Includes 5" & 6" (125 & 150mm) rods (spare if needed)
Applications: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Single, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
Compatible Gate Materials: Aluminum, Steel/Ornamental Iron, Wood, Vinyl/PVC

Latch Specifications

Material: Industrial strength polymer & stainless steel components
Fits fence posts 1 1/2"-6" (38-150mm) deep
Minimum post width 1/2" (38mm)

Hinge Specifications

Compatible Material: Vinyl, Wood
Square-To-Square Gate Frame/Post Shape
Screw-On Mounting
Ideal Gate Gap: 1" (25mm)
Hinge Closing Type: Self Closing
Max Gate Weight: 132 lbs.

Hinge Installation

Drop Rod Installation

Name	LokkLatch Deluxe S3 Gate Latch Kit with TruClose Adjustable Hinge Sets & Drop Rod - 8000-2108
SKU	8000-2108
Price	$223.85
