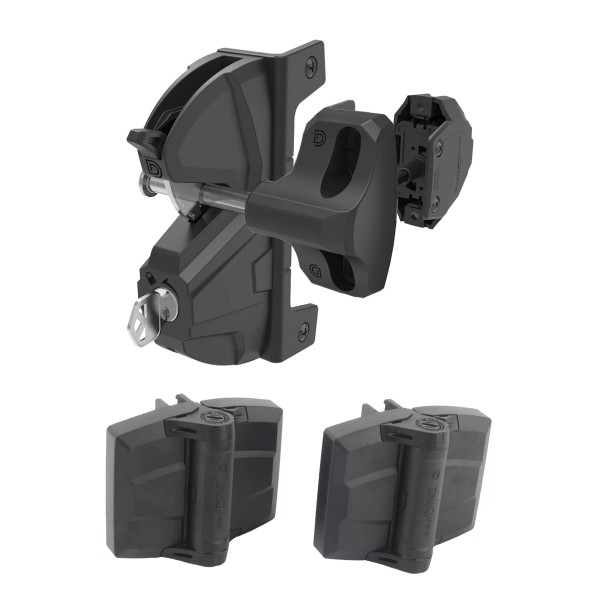

LokkLatch Deluxe S3 Gate Latch Kit with TruClose Adjustable Hinges - 8000-2079

The NEW LokkLatch Deluxe S3 offers both vertical and horizontal adjustment, ensuring the best fit and reliable operation. This latch kit is designed to fit 6-inch square gate posts and can be adapted to left- or right-swinging gates. The kit includes the Series 3 latch and a pair of TruClose gate hinges.
Part Number: 8000-2079
$129.80 each
$129.80 each
OR


Details

LokkLatch Deluxe S3 Gate Latch Kit with TruClose Adjustable Hinges - 8000-2079

Experience the better, stronger, and faster to install LokkLatch Deluxe Series 3 gate latch kit. This latch kit is easy to install on any left- or right-oriented swing gate, with up to a 6-inch post. Offering superior security, this gate latch can be used in residential and industrial settings, operating with locks on both sides, eliminating the need for padlocks, chains, and handle holes. The LokkLatch Deluxe S3 is made of super-strong and rust-free polymers and stainless-steel components.

This kit also includes a pair of TruClose Multi-Adjustable Heavy-Duty Gate Hinges. The hinges have an adjustable spring tension and a 3/4" gap adjustment, combined with up to 3/4" horizontal or vertical adjustments. It fits a gate gap ranging from 5/8" - 1 3/8" while the ideal gap size is 1", while its heavy-duty construction makes these hinges suitable for gates weighing up to 132 lbs.

Kit Includes

Latch Features

  • Operates and locks from both sides of the gate
  • Vertically & horizontally adjustable
  • Keyed-alike or keyed different options
  • "Fitting-jig" provides easier, faster installation
  • Ball-Joint Connecting Rod simplifies installation
  • Includes Two latch-bolt lengths for different gates
  • Requires only one drilled hole through post
  • Dual 6-pin locks can be rekeyed to match doors
  • Includes 5" & 6" (125 & 150mm) rods (spare if needed)
  • Applications: Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Single, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
  • Compatible Gate Materials: Aluminum, Steel/Ornamental Iron, Wood, Vinyl/PVC

Latch Specifications

  • Material: Industrial strength polymer & stainless steel components
  • Fits fence posts 1 1/2"-6" (38-150mm) deep
  • Minimum post width 1/2" (38mm)

Hinge Specifications

  • Compatible Material: Vinyl, Wood
  • Square-To-Square Gate Frame/Post Shape
  • Screw-On Mounting
  • Ideal Gate Gap: 1" (25mm)
  • Hinge Closing Type: Self Closing
  • Max Gate Weight: 132 lbs.

Hinge Installation
