Details

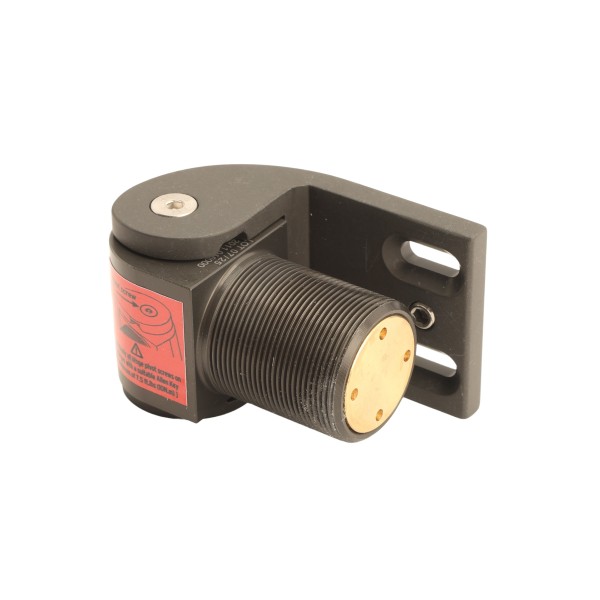

D&D SureClose 57 AT90 S 178° Self-Closing Flush Mount Thrust Bearing Gate Hinge-Closer
Aluminum SureClose 57 AT90 S Thrust Bearing Hinge Closer has dual thrust bearings and is a 180-degree gate swing.
- Self Closing
- Max Gate Swing: 180°
- Hinge Gap: 1/2"
- Fence Post Size: 2"
- Flush Mounted
- Type: 57 AT90 S
**Please Note: Post Mounting Brackets Sold Separately. Recommended Model: D&D Model 7515
| SKU | Model | Type | Bracket | Self-Closing From | Max Gate Swing | Fence Post Size Minimum | Pool/Child Safety** |
|---|---|---|---|---|---|---|---|
| 75001213 | SM AT90 S | Hinge | Aluminum Screw-on | - | 180° | 2" (50mm) | - |
| 75057213m | 57 AT90 S | Closer & Hinge | Aluminum Screw-on | 85° | 180° | 2" (50mm) | - |
| 75057223m | 57SF AT90 S | Closer & Hinge | Aluminum Screw-on | 90° | 90° | 2" (50mm) | Yes |
| 75108213m | 108 AT90 S | Closer & Hinge w/ Final Snap Action | Aluminum Screw-on | 85° | 180° | 3" (76mm) | - |
| 75108223 | 108SF AT90 S | Closer & Hinge w/ Final Snap Action | Aluminum Screw-on | 90° | 90° | 3" (76mm) | Yes |
| 75001214m | SM AT90 W | Hinge | Steel Weld-on | - | 180° | 2" (50mm) | - |
| 75057214m | 57 AT90 W | Closer & Hinge | Steel Weld-on | 85° | 180° | 2" (50mm) | - |
| 75057224m | 57SF AT90 W | Closer & Hinge | Steel Weld-on | 90° | 90° | 2" (50mm) | Yes |
| 75108214m | 108 AT90 W | Closer & Hinge w/ Final Snap Action | Steel Weld-on | 85° | 180° | 3" (76mm) | - |
| 75108224m | 108SF AT90 W | Closer & Hinge w/ Final Snap Action | Steel Weld-on | 90° | 90° | 3" (76mm) | Yes |
Additional Information
| SKU | 75057213 |
|---|---|
| Max Gate Swing | 180° |
| Hinge Gap | 1/2" |
| Fence Post Size | 2"+ |
| Fixing Method | Bolt-On |
| Body Material | Aluminum |
| Mount Latch | Flush Mount |
| Series | SureClose |
| Max Gate Weight | 180 lbs. |
| Manufacturer | D&D Technologies, Inc - SHUT IT GATE HARDWARE |
| Fits Fence Type | Chain Link, Metal |
