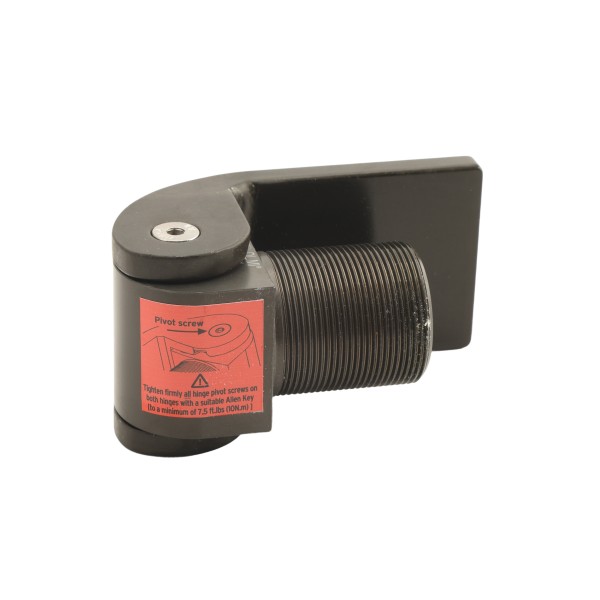

D&D SureClose 57 AT90 W 178 Degree Flush Mount Self-Closing Thrust Bearing Gate Hinge-Closer - 75057214
Details
D&D SureClose 57 AT90 W 178 Degree Flush Mount Self-Closing Thrust Bearing Gate Hinge-Closer - 75057214
Steel SureClose 57 AT90 W Thrust Bearing Hinge Closer has dual thrust bearings and is a 180 degree gate swing.
- Self Closing
- Max Gate Swing: 180 degrees
- Hinge Gap: 1/2"
- Fence Post Size: 2"
- Flush Mounted
- Type: 57 AT90 W
**Please Note: Post Mounting Brackets Sold Separately. Recommended Model: D&D Model 7525
| SKU | Model | Type | Bracket | Self-Closing From | Max Gate Swing | Fence Post Size Minimum | Pool/Child Safety** |
|---|---|---|---|---|---|---|---|
| 75001213 | SM AT90 S | Hinge | Aluminum Screw-on | - | 180 degrees | 2" (50mm) | - |
| 75057213m | 57 AT90 S | Closer & Hinge | Aluminum Screw-on | 85 degrees | 180 degrees | 2" (50mm) | - |
| 75057223m | 57SF AT90 S | Closer & Hinge | Aluminum Screw-on | 90 degrees | 90 degrees | 2" (50mm) | Yes |
| 75108213m | 108 AT90 S | Closer & Hinge w/ Final Snap Action | Aluminum Screw-on | 85 degrees | 180 degrees | 3" (76mm) | - |
| 75108223 | 108SF AT90 S | Closer & Hinge w/ Final Snap Action | Aluminum Screw-on | 90 degrees | 90 degrees | 3" (76mm) | Yes |
| 75001214m | SM AT90 W | Hinge | Steel Weld-on | - | 180 degrees | 2" (50mm) | - |
| 75057214m | 57 AT90 W | Closer & Hinge | Steel Weld-on | 85 degrees | 180 degrees | 2" (50mm) | - |
| 75057224m | 57SF AT90 W | Closer & Hinge | Steel Weld-on | 90 degrees | 90 degrees | 2" (50mm) | Yes |
| 75108214m | 108 AT90 W | Closer & Hinge w/ Final Snap Action | Steel Weld-on | 85 degrees | 180 degrees | 3" (76mm) | - |
| 75108224m | 108SF AT90 W | Closer & Hinge w/ Final Snap Action | Steel Weld-on | 90 degrees | 90 degrees | 3" (76mm) | Yes |
| SKU | 75057214 |
|---|---|
| Series | SureClose |
| Unit Combination | Single |
| Max Gate Swing | 178° |
| Hinge Gap | 1/2" |
| Hinge Closing Type | Self Closing |
| Fence Post Size | 2"+ |
| Body Material | Steel |
| Mount Latch | Flush Mount |
| Max Gate Weight | 180 lbs. |
| Manufacturer | D&D Technologies, Inc - SHUT IT GATE HARDWARE |
