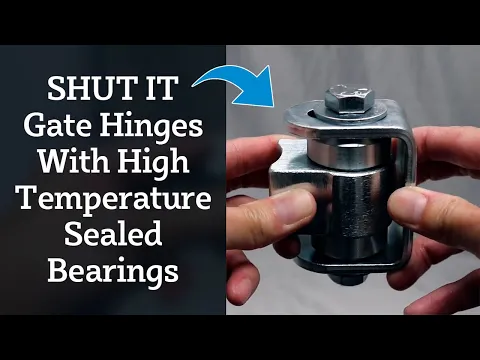

D&D SHUT IT BadAss Uphill Bolt Or Weld-On Steel Barrel Gate Hinge 6" And 10" Strap Set w/ Sealed Bearings - CI3975
The BadAss Uphill Strap Hinge Set by D&D Technologies SHUT IT Gate Hardware is a set that features one 6" BadAssStrap Hinge and one 10" BadAss Strap Hinge to create ease of installation on a significant incline or decline and with its extreme bearing load of 3000 lbs, it is guaranteed to last. By using both of these BadAss Strap Hinges, you're promised an almost frictionless gate installation.
Features:
- Body Material: Steel, Zinc Plated Finish
- Yoke Material: Steel
- Eight Sealed Maintenance Free Bearings (no greasing)
- Ideal For Flat Post Installations
- Maximum Gate Load: 3000 lbs
- Maximum Gate Weight: 1500 lbs
- Weld-On Installation
- Limited Lifetime Warranty (5 Years on Bearings)
Additional Information
| SKU | CI3975 |
|---|---|
| Series | SHUT-IT |
| Gap Variance (Inches) | Fixed 1/2" |
| Mounting Method | Bolt-On, Weld-On |
| Finish | Zinc |
| Sealed Bearings | 4 |
| Max Gate Weight | 1,500 lbs. |
| Gate Frame/Post Shape | Square-To-Square |
| Hinge Closing Type | Non-Self Closing |
| Ideal Gate Gap | 1/2" (13mm) Fixed |
| Max Gate Load (lbs) | 3,000 |
| Yoke Material | Steel |
| Body Material | Steel |
| Ideal Application | Driveway Gate (Single or Double Gate), Pedestrian Gate, Pet Gate, Playground Gate, Privacy Gate, Public/Commercial Gate, Side Gate |
| Height | 5.9" |
| Manufacturer | D&D Technologies, Inc - SHUT IT GATE HARDWARE |
| Unit Combination | Pair |
