D&D SureClose 57SF AT90 S 88 Degree Self-Closing Flush Mount Thrust Bearing Gate Hinge-Closer - 75057223
Details
D&D SureClose 57SF AT90 S 88 Degree Self-Closing Flush Mount Thrust Bearing Gate Hinge-Closer - 75057223

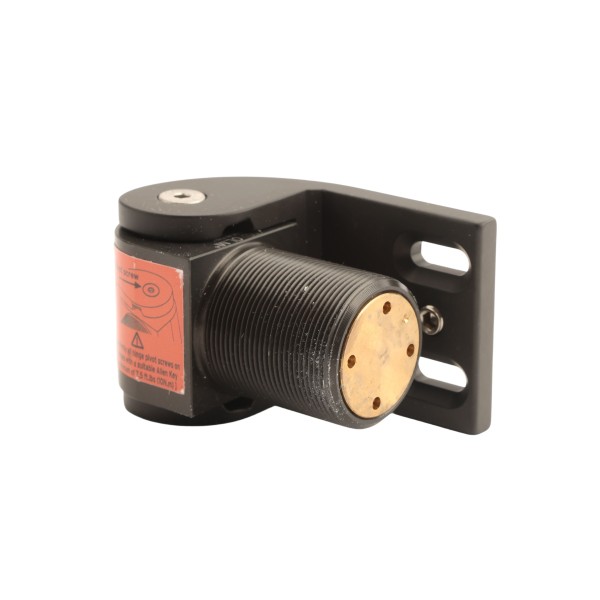

Aluminum SureClose 57SF AT90 S Thrust Bearing Hinge Closer has dual thrust bearings and is a 90 degree gate swing. Approved for pool and child safety gates.
- Self Closing
- Pool/Child Safety
- Max Gate Swing: 90 degrees
- Hinge Gap: 1/2"
- Fence Post Size: 2"
- Flush Mounted
- Type: 57SF AT90 S
*Please Note: Gate will not hold open at 90 degrees (making it okay for use on pool and child safety gates). SureClose SF models require a separate gate stop to be installed to prevent the gate from being forced past 90 degrees. Recommended opening setting is 85 degrees to take into consideration possible installation abnormalities. To properly install this gate closer, you will need to purchase the D&D GateStop - Soft, Quiet Gate Closure - TCGS3, sold separately. Absence of a gate stop will void warranty on this product. D&D recommends installing the gate stop at the bottom of the fence post if gate is lower than 84" (210cm).
**Please Note: Post Mounting Brackets Sold Separately. Recommended Model: D&D Model 7515
| SKU | 75057223 |
|---|---|
| Hinge Style | Self-Closing Hinge |
| Unit Combination | Single |
| Max Gate Weight | 180 lbs. |
| Finish | Anodised Black |
| Series | SureClose |
| Hinge Material | Steel |
| Fence Post Size | 2"+ |
| Max Gate Swing | 88° |
| Gate Frame/Post Shape | Square-To-Square |
Compatible Material
Check out our helpful guide on what gate compatibility really means!
Learn More
|
Chain Link |
| Hinge Closing Type | Self-Closing |
| Body Material | Aluminum |
| Mounting Method | Screw-On |
|
Series
Series Type will change the Look and Style of Handle. It will not effect the Finish or Latch Type, Shape Only
|
No |
| Manufacturer | D&D Technologies, Inc |
