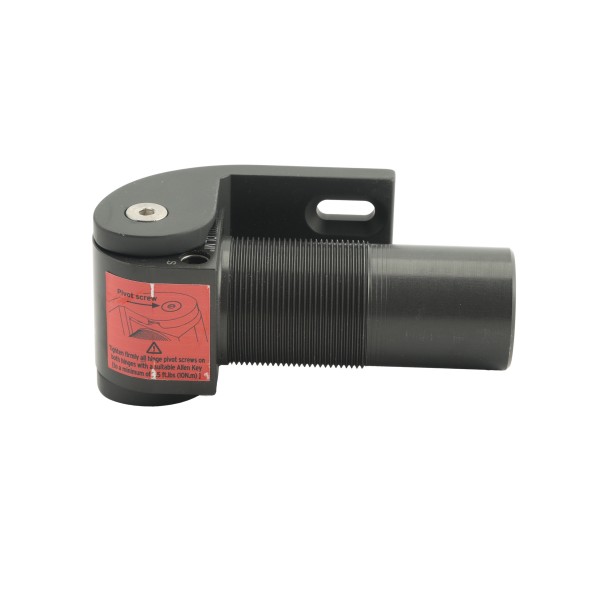

D&D SureClose 108 AT90 S Gate Hinge and Closer Final Snap Screw-On Flush Mount Self-Closing Aluminum Bracket - 75108213M
Details
D&D SureClose 108 AT90 S Gate Hinge and Closer Final Snap Screw-On Flush Mount Self-Closing Aluminum Bracket - 75108213M
D&D Hydraulic SureClose Gate Closers and Hinges are designed to replace older styled, bulky commercial gate hinges and closers. These high-strength hinge and closers provide superior smooth, bind-free performance backed by high-tech engineering and patented designs that allow for concealment of the hydraulics in remarkably small housings. The SureClose ReadyFit 180 model provides 180 degrees opening and closing, making it convenient for high traffic applications, without having to compromise quality.
Each externally mountable model lives up to its name by providing convenient screw holes for reliable and adjustable fixing (Self-Drilling Tek Screws Included). These adjustable slots allow for fine vertical adjustment, meaning fast and easy adjustability. Horizontal alignment can be adjusted by using the built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall desired alignment is achieved. Additionally, all SureClose housing are constructed using high-grade aluminum, meaning no rust or weathering when installed outdoors.
Features:
- Self-Closing From 90 degrees - Will Not Hold Open
- Built-In Powerful, Hidden Hydraulics
- Maintenance Free, With Superior Corrosion Resistance
- Multiple Adjustment Options (Force, Speed)
- Prevents Gate From Slamming and Creating Obnoxious Noise and Gate Damage
- Capable of Self-Closing Gates Up To 260 lb
- Includes Installation Screws
- 5 Year Manufacturer's Warranty
Specifications:
- Gate Material: Aluminum, Steel, Ornamental Iron
- Approximate Gate Size: 4 ft. Wide x 6 ft. High
- Gate Frame/Post Shape: Square To Square
- Minimum Post Size: 2 1/4" +
- Ideal Gate Gap: 1/2"
- Fixing Method: Screw-On
- Finish: Black Powder Coating
- Ideal Gate Applications: Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate (Single or Double), Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Security Gate
**Please Note: Post Mounting Brackets Sold Separately. Recommended Model: D&D Model 7515
| SKU | Model | Type | Bracket | Self-Closing From | Max Gate Swing | Fence Post Size Minimum | Pool/Child Safety** |
|---|---|---|---|---|---|---|---|
| 75001213 | SM AT90 S | Hinge | Aluminum Screw-on | - | 180 degrees | 2" (50mm) | - |
| 75057213m | 57 AT90 S | Closer & Hinge | Aluminum Screw-on | 85 degrees | 180 degrees | 2" (50mm) | - |
| 75057223m | 57SF AT90 S | Closer & Hinge | Aluminum Screw-on | 90 degrees | 90 degrees | 2" (50mm) | Yes |
| 75108213m | 108 AT90 S | Closer & Hinge w/ Final Snap Action | Aluminum Screw-on | 85 degrees | 180 degrees | 3" (76mm) | - |
| 75108223 | 108SF AT90 S | Closer & Hinge w/ Final Snap Action | Aluminum Screw-on | 90 degrees | 90 degrees | 3" (76mm) | Yes |
| 75001214m | SM AT90 W | Hinge | Steel Weld-on | - | 180 degrees | 2" (50mm) | - |
| 75057214m | 57 AT90 W | Closer & Hinge | Steel Weld-on | 85 degrees | 180 degrees | 2" (50mm) | - |
| 75057224m | 57SF AT90 W | Closer & Hinge | Steel Weld-on | 90 degrees | 90 degrees | 2" (50mm) | Yes |
| 75108214m | 108 AT90 W | Closer & Hinge w/ Final Snap Action | Steel Weld-on | 85 degrees | 180 degrees | 3" (76mm) | - |
| 75108224m | 108SF AT90 W | Closer & Hinge w/ Final Snap Action | Steel Weld-on | 90 degrees | 90 degrees | 3" (76mm) | Yes |
| SKU | 75108213M |
|---|---|
| Finish | Black |
| Series | SureClose |
| Unit Combination | Single |
| Max Gate Swing | 180° |
| Hinge Closing Type | Self Closing |
| Fence Post Size | 3"+ |
| Body Material | Aluminum |
| ADA Compliant | Yes |
| Mount Latch | Flush Mount |
| Ideal Application | Child Safety Gate, Driveway Gate (Single or Double Gate), Front Gate, Pedestrian Gate, Pet Gate, Playground Gate, Pool Gate, Privacy Gate, Public/Commercial Gate, Safety Gate, Security Gate, Side Gate |
| Ideal Gate Gap | 1/2" (13mm) |
| Max Gate Weight | 260 lbs. |
| Manufacturer | D&D Technologies, Inc - SHUT IT GATE HARDWARE |
